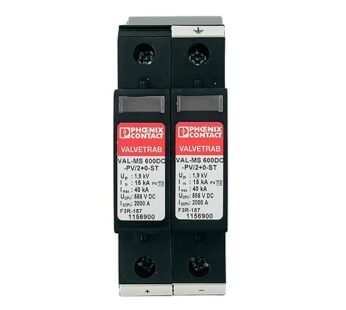

ZJBENY 2 POLE 600V DC SURGE PROTECTOR DEVICE

Weight 0.250 kg
Dimensions 9 × 4 × 7 cm
SKU: BUD-40/2

රු7,250.00 රු6,250.00

In Stock
Model BUD-40/2
Moulds 2
SPD according to EN 50539-11 Type 2
Open Voltage Uoc Max 600V
Max. discharge current (8/20 µs) [(DC+/DC-) –> PE] (Imax ) 40KA
Nominal discharge current (8/20 µs) [(DC+/DC-) –> PE] (In ) 20KA
Voltage protection level  Up ≤ 3.8KV
Response Time (tA ) ≤ 25 ns
Operating state / fault indication Green/Red
Remote Signalling Contact (optional) Changeover contact
For mounting on 35mm DIN rails
Degree of protection IP20
Certificate TUV

Download Data Sheet

In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
SKU: BUD-40/2 Categories: ,

Description

Model BUD-40/2
Moulds 2
SPD according to EN 50539-11 Type 2
Open Voltage Uoc Max 600V
Max. discharge current (8/20 µs) [(DC+/DC-) –> PE] (Imax ) 40KA
Nominal discharge current (8/20 µs) [(DC+/DC-) –> PE] (In ) 20KA
Voltage protection level  Up ≤ 3.8KV
Response Time (tA ) ≤ 25 ns
Operating state / fault indication Green/Red
Remote Signalling Contact (optional) Changeover contact
For mounting on 35mm DIN rails
Degree of protection IP20
Certificate TUV

Download Data Sheet

Additional information

Weight 0.250 kg
Dimensions 9 × 4 × 7 cm
