Original price was: රු8,900.00.රු8,500.00Current price is: රු8,500.00.TOMZN HIKING THREE PHASE STATIC KWH METER (DTS238-7)
රු17,950.00
| Parameter | Specification |
|---|---|
| Meter model no. | DTS238-7 |
| Rated frequency | 50 / 60 Hz |
| Rated current | 1.5 (6)– 10 (100) A |
| Rated voltage | 3×120 – 3×415 V |
| Normal voltage range | 90% Un – 110% Un |
| Limit voltage range | 70% Un – 120% Un |
| Accuracy class | Class 1 |
| Pulse constant | See Meter |
| Communication Protocols | N/A |
| CT Support | N/A |
DATASHEET
In Stock
Add to Wishlist
Add to Wishlist
Description
1.General Description

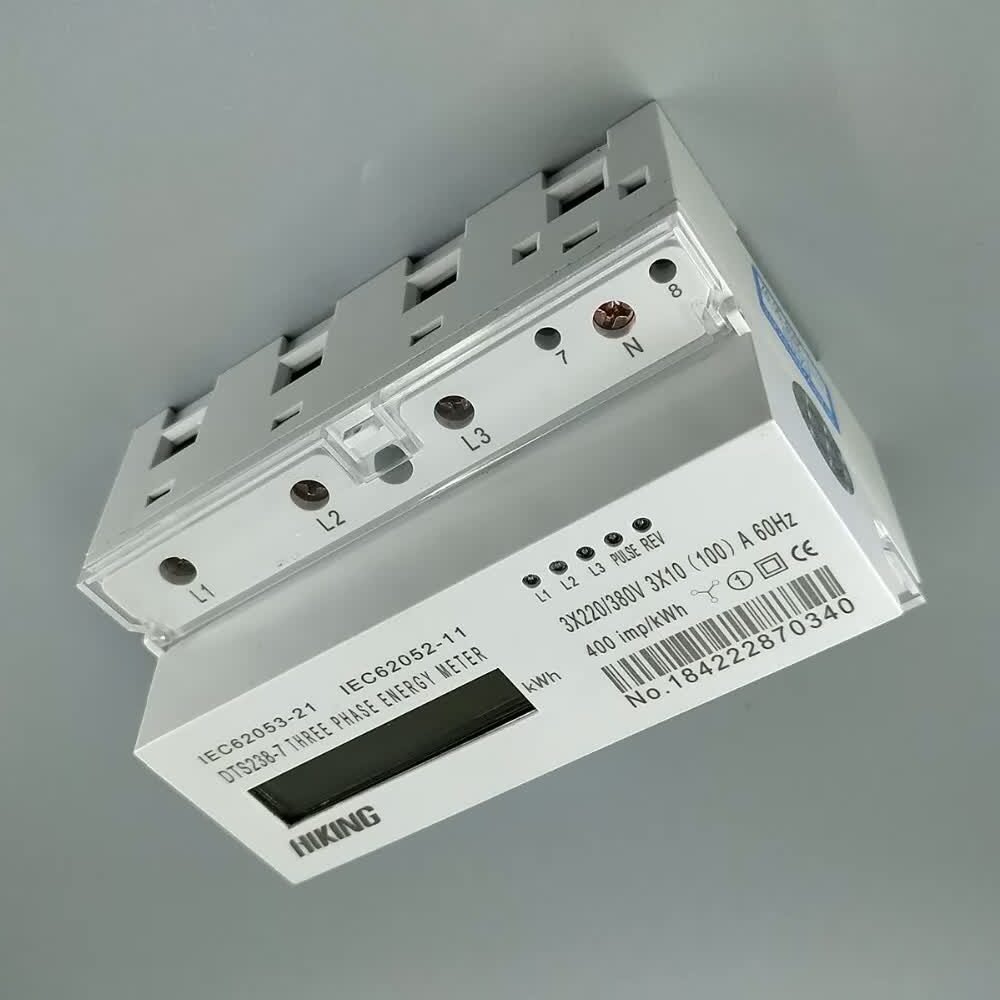

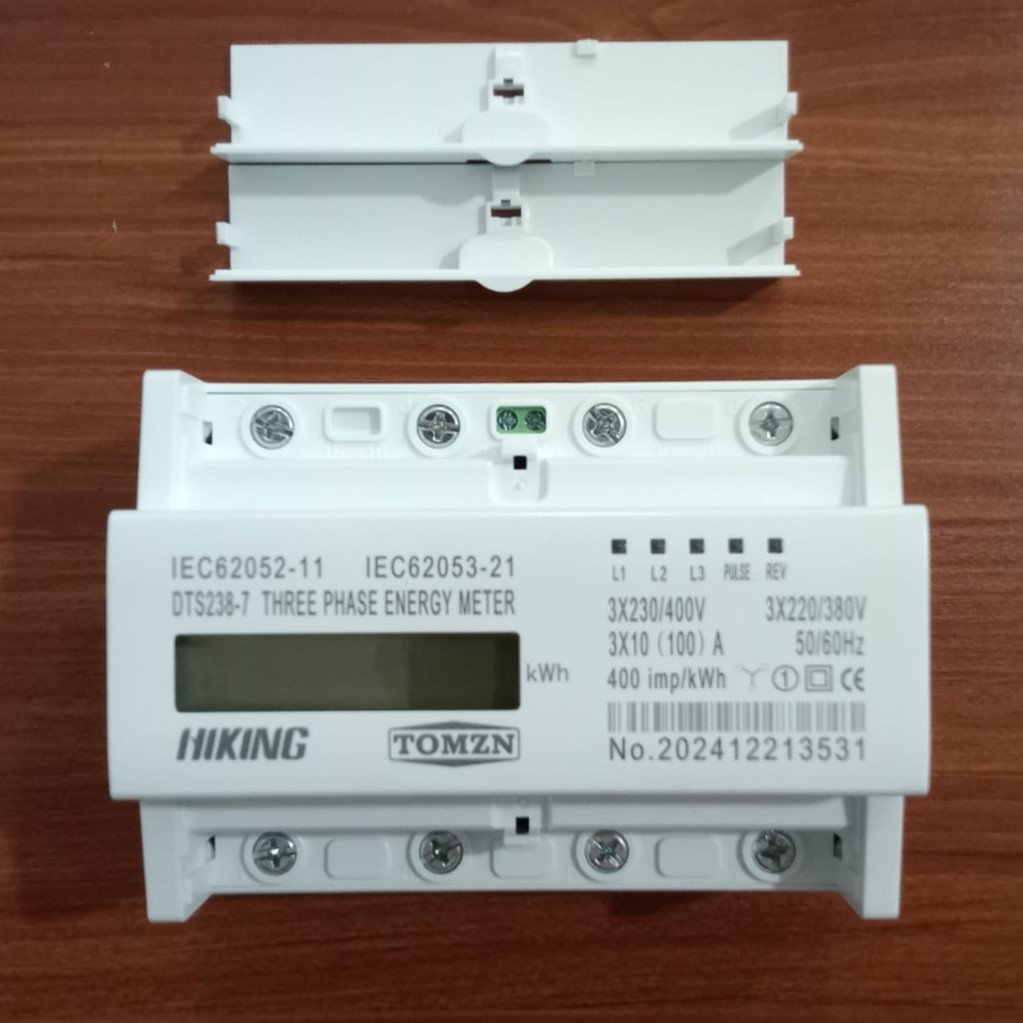

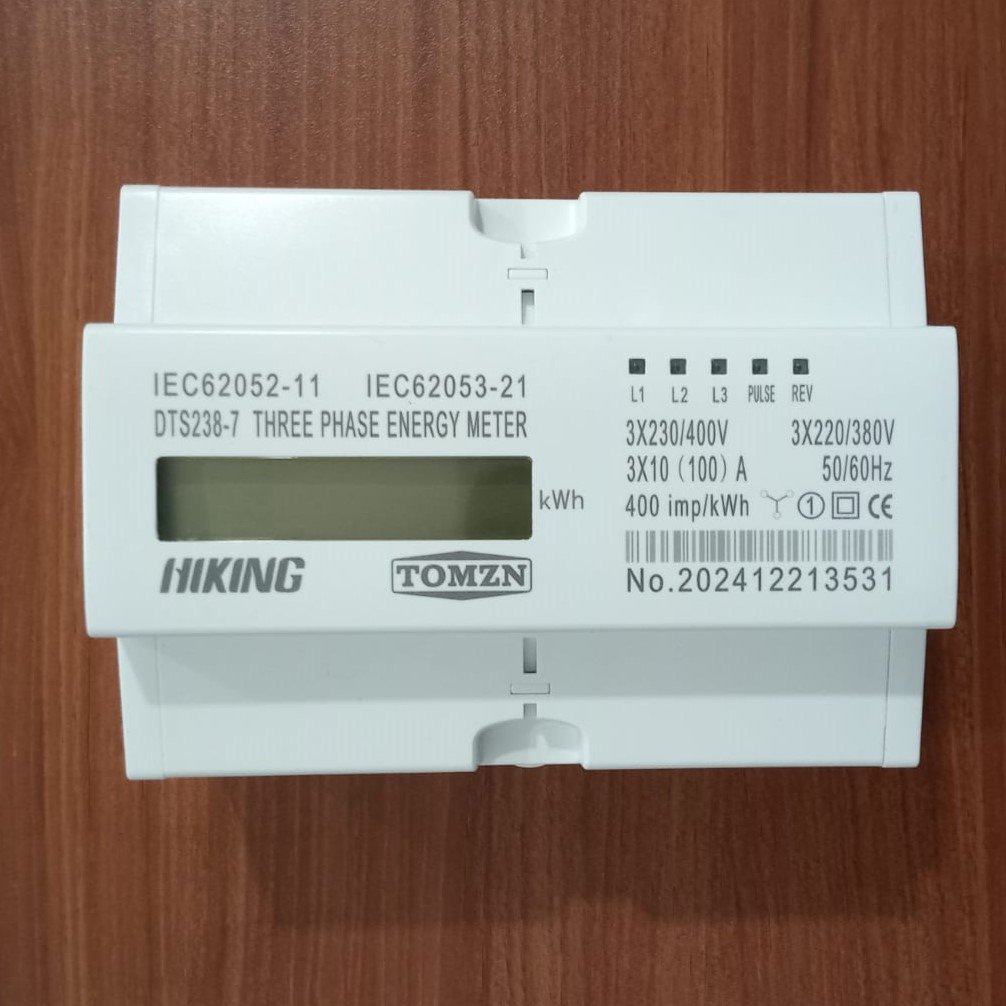

DTS238-7 static three phase four wire energy meter is designed for simply measuring the AC active energy/reactive energy and variable parameter adopt advanced large-scale integrated circuit IC and SMT manufacturing technology. They have following features: bi-directional or unidirectional energy measurement , wide voltage , anti-tamper , high accuracy and reliability , large overload , low self-consumption , small volume, and lightweight construction.
The meter should be installed in suitable environment with ambient temperature range between -25℃～+55℃,the relative humidity less than 75% and temperature limits between and-40℃～+70℃.
The meter is manufactured complying with international standard IEC62052-11 on “Electricity metering equipment (AC) General requirements tests and test conditions” and IEC62053-21 on “Static meters for active energy (classes 1 and 2)”.
Additional information
| Weight | 0.550 kg |
|---|
