TOMZN DC 1000V PV Fuses 15A 20A 25A 30A 32A

Description

TOMZN Solar DC 1000V PV Fuses 6A 10A 15A 20A 25A 32A 30A High Voltage for Solar System Protection

Brand Name : TOMZN

Model Number : TOPV-30

Type : High Voltage

Rated Voltage : DC 1000V

Please noted 15A, 20A, 25A, 30A, 32A only fuse. If you want fuse holder, you have to buy the fuse holder.

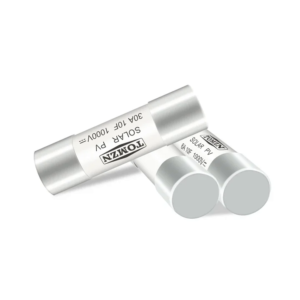

PV String Fuses for solar panels  – 1000VDC

A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.

Applications

Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC

Electrical Characteristics
Rated voltage 1000VDC
Amps  10A,15A,20,25A,30A,32A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms

Standard
IEC 60269-6, EN 60947-3, DC-20B
