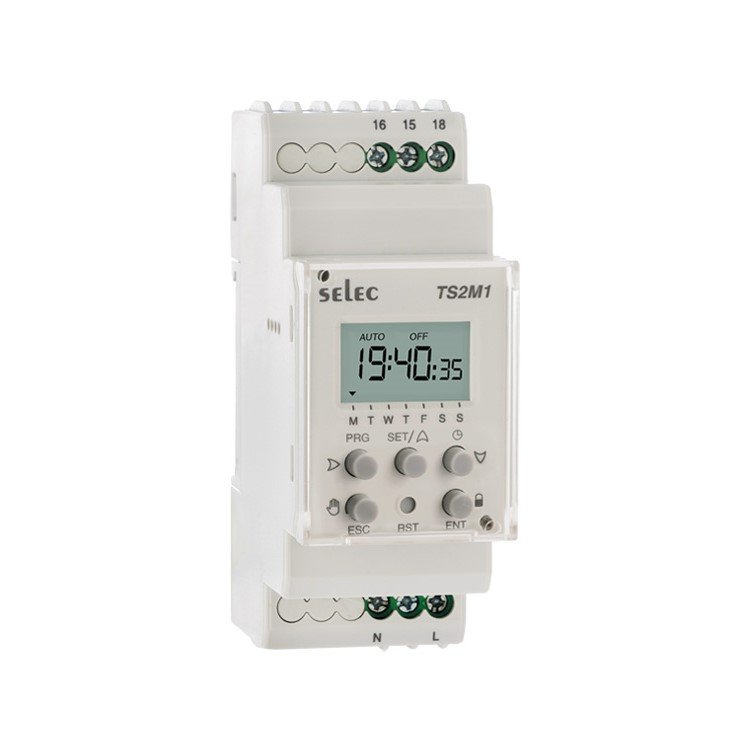

SELEC TS2M1 DIN RAIL MOUNT SINGLE CHANNEL DAILY/WEEKLY TIMER SWITCH/RELAY

Description

Key Features

• Daily/Weekly Scheduling – Program up to 50 ON/OFF steps for flexible timing control.

• Multiple Operating Modes – Auto mode for scheduled operation; manual override for ON or OFF when needed.

• Holiday Function – Set up to 16 holiday or exception days where schedules are temporarily disabled.

• Long Battery Backup – Built-in lithium battery provides up to 10 years of memory retention.

• Clear LCD Display – Easy-to-read screen showing time, day, relay status, and programming mode.

• Compact Design – Suitable for control panels, distribution boards, and switchgear.

• Easy Mounting – Available in wall-mount or DIN-rail configurations.

• Standard Voltage Options – Compatible with 230V AC (with variant options for 110V).

Specifications

• Model: Single-Channel Daily/Weekly Timer

• Supply Voltage: 230V AC (110V version available)

• Relay Output: 1 change-over (SPDT) contact

• Programming Capacity: Up to 50 ON/OFF steps

• Backup Battery: Long-life lithium cell

• Display: LCD with 12/24-hour format

• Holiday Settings: Up to 16 programmable exceptions

• Mounting Type: Wall-mount or DIN-rail (model dependent)

• Operating Modes: Auto / Manual ON / Manual OFF

Applications

• Automated lighting systems

• Water pumps and irrigation cycles

• HVAC and ventilation equipment

• Industrial machinery timing

• Signage, outdoor lighting, and commercial displays

• Security systems and alarm scheduling

• Pool pumps and aquaculture systems
