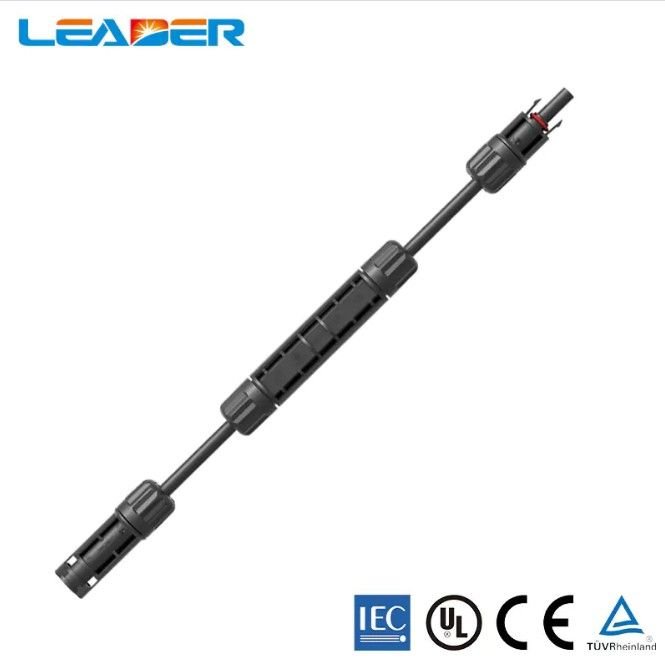

Price range: රු70.00 through රු425.00LEADER LD6 MINI WIRED PV DC FUSE HOLDER
The LEADER LD6 Mini is a waterproof inline fuse connector designed for photovoltaic and solar panel wiring systems. It features a durable insulating housing and tin-plated copper contacts for reliable electrical connection. The connector is suitable for outdoor use with UV resistance and protection against moisture and dust. It accommodates standard 10 by 38 millimeter photovoltaic fuses and solar cables ranging from 2.5 to 6 square millimeters. The secure locking mechanism ensures safe and easy installation. The LD6 Mini is suitable for residential and commercial solar installations and provides a reliable solution for fuse protection in solar string circuits.
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Description
Specifications
Electrical specifications
-
Rated DC voltage: 1000 V
-
Rated current: 1 to 32 A depending on fuse
-
Fuse size: 10 x 38 mm
-
Contact material: Copper with tin plating
-
Contact resistance: Below 0.5 milliohm
-
Rated breaking capacity: Up to 30 kA at 1000 V DC
-
Impulse withstand voltage: 16 kV
Cable and mechanical specifications
-
Compatible cable cross section: 2.5 to 6 mm²
-
Protection rating: IP68 waterproof and dustproof
-
Operating temperature range: -40 to 85 degrees Celsius
-
Insulating housing material: Weather-resistant PPO or PC
-
Flame resistance: UL94 V0
Standards and certification
-
CE
-
IEC
-
UL
-
TUV
Additional information
| Weight | 0.200 kg |
|---|---|
| Dimensions | 8 × 2 × 2 cm |
