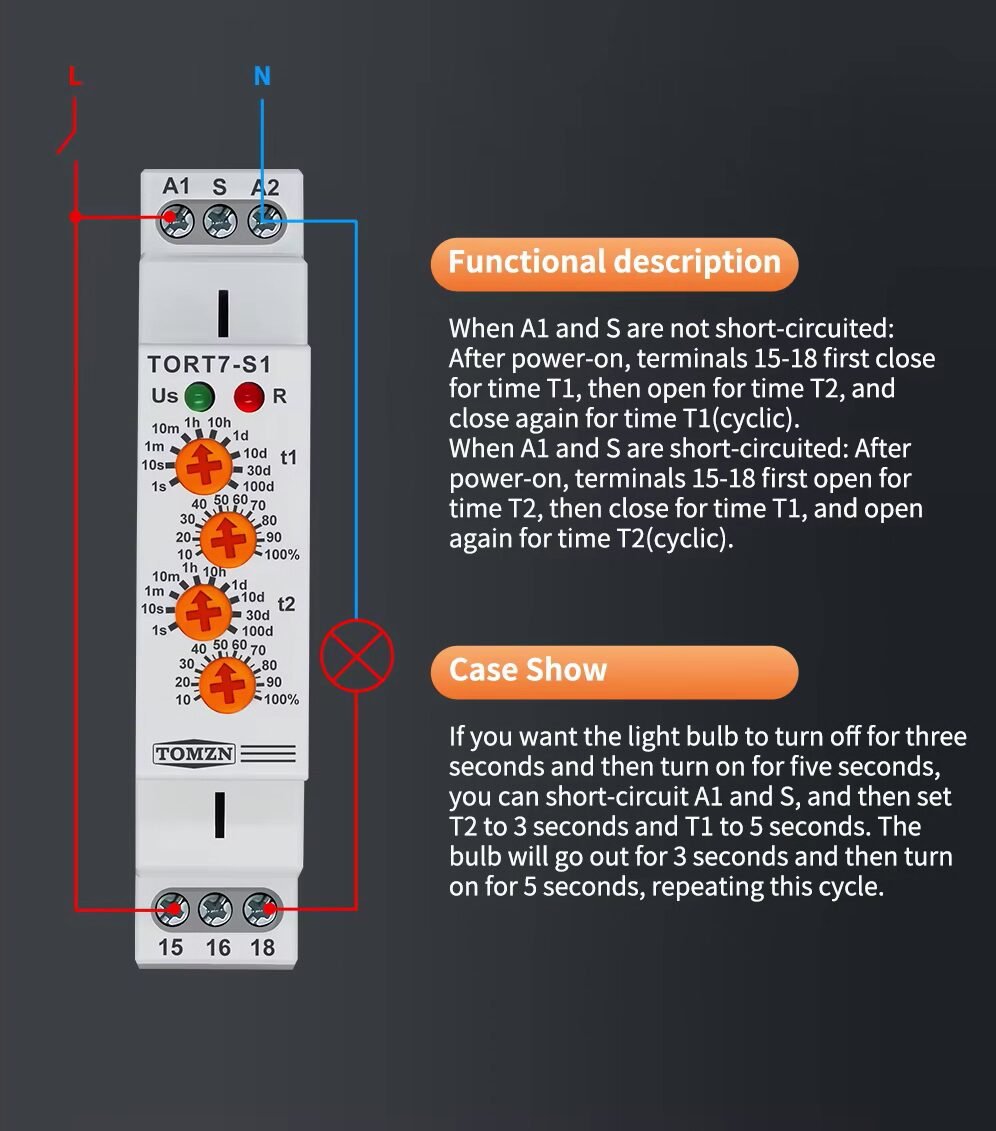

DIN RAIL MOUNT ASYMMERTIC TIMER RELAY | TOMZN TORT7-S1
An ideal solution for versatile timing packed inside a familiar form, this asymmetric timer relay delivers precise on–off cycle control for automation, control panels, and industrial systems. It supports wide voltage variants, offers a broad timing range from fractions of a second to extended multi-day cycles, and ensures stable repeat accuracy through mechanical potentiometer adjustment. With SPDT relay output, LED status indication, DIN-rail mounting, and compliance with international safety standards, it is engineered for reliable operation in demanding electrical environments.
Description
Parameter |
Specification |
|---|---|
| Function | Asymmetric cycler time relay |
| Supply terminals | A1–A2 |
| Voltage range (W240) | AC/DC 12–240V (50–60Hz) |
| Burden (W240) | AC 0.09–3VA / DC 0.05–1.7W |
| Voltage range (A230) | AC 230V (50–60Hz) |
| Power input (A230) | AC max. 6VA / 1.3W |
| Supply voltage tolerance | -15% / +10% |
| Supply indication | Green LED |
| Time range | 0.1s – 100 days |
| Time setting | Potentiometer |
| Time deviation | 10% (mechanical setting) |
| Repeat accuracy | 0.2% (set value stability) |
| Temperature coefficient | 0.05%/°C at 20°C (0.05%/°F at 68°F) |
| Output | 1 × SPDT |
| Current rating | 16A / AC1 |
| Switching voltage | 250VAC / 24VDC |
| Minimum breaking capacity (DC) | 500 mW |
| Output indication | Red LED |
| Mechanical life | 1 × 10⁷ operations |
| Electrical life (AC1) | 1 × 10⁵ operations |
| Reset time | Max. 200 ms |
| Operating temperature | -20°C to +55°C (-4°F to 131°F) |
| Storage temperature | -35°C to +75°C (-22°F to 158°F) |
| Mounting | DIN rail EN/IEC 60715 |
| Protection degree | IP40 (front panel) / IP20 (terminals) |
| Operating position | Any |
| Overvoltage category | III |
| Pollution degree | 2 |
| Max. cable size | Solid wire: max. 1 × 2.5 mm² or 2 × 1.5 mm² With sleeve: max. 1 × 2.5 mm² (AWG 12) |
| Tightening torque | 0.4 Nm |
| Dimensions | 90 × 18 × 64 mm |
| Weight | 1 × SPDT: W240 – 63 g, A230 – 62 g 2 × SPDT: W240 – 83 g, A230 – 82 g |
| Standards | EN 61812-1, IEC 60947-5-1 |
