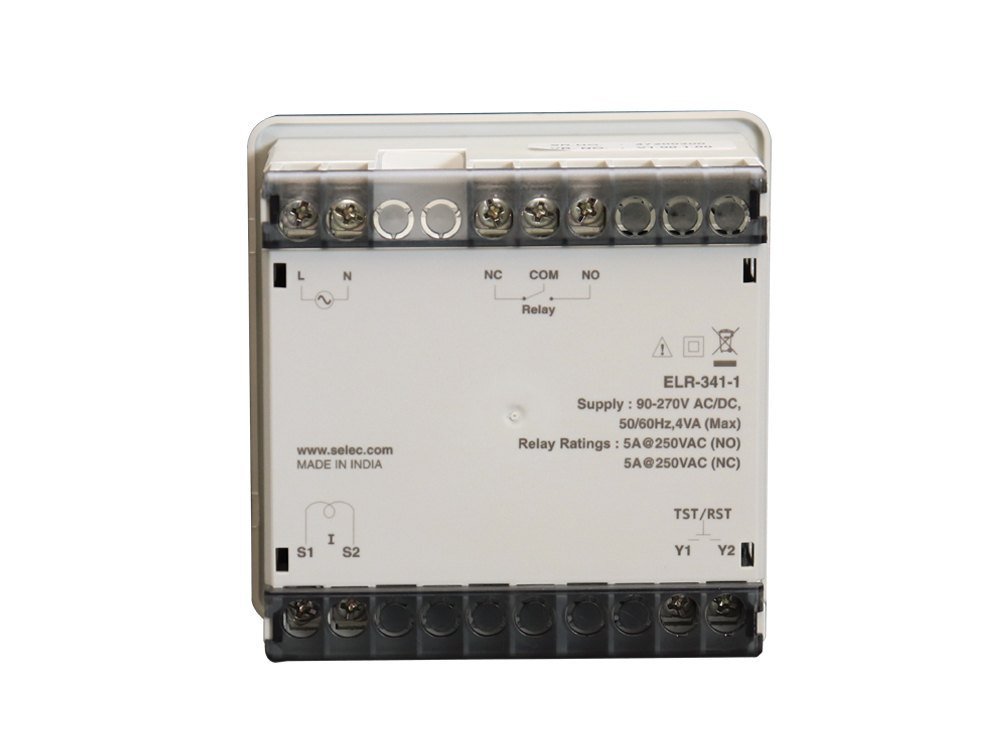

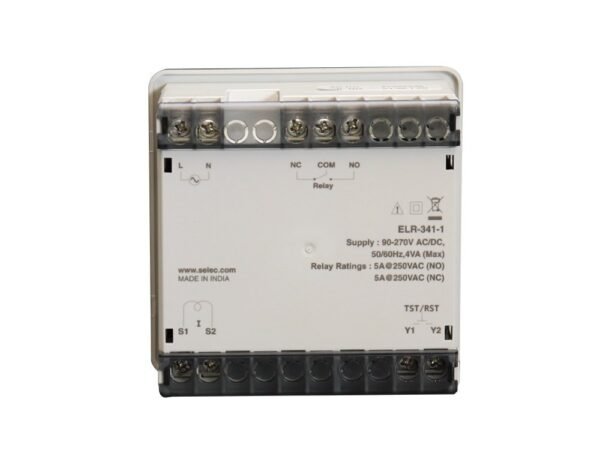

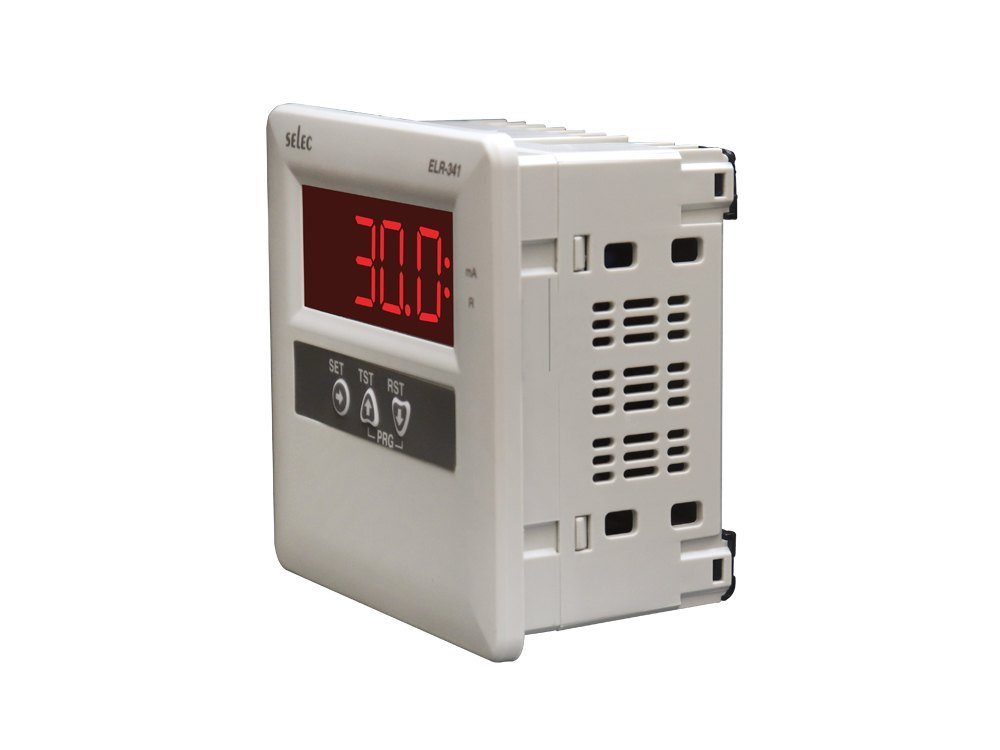

Original price was: රු7,250.00.රු6,400.00Current price is: රු6,400.00.SELEC DIGITAL ELR-341-1 PANEL MOUNT EARTH LEAKAGE RELAY
10%
රු11,110.00 Original price was: රු11,110.00.රු10,100.00Current price is: රු10,100.00.
Specification
- Detects Leakage current for 1Ø & 3Ø systems
- Range: 30mA to 30A
- 1 C / O (SPDT) Relay output
- Supply voltage of 90 – 270V AC/DC
- Test and Reset Function via Front / Remote
- DIN-rail mounting
- CE Certified
In Stock
Add to Wishlist
Add to Wishlist
Description
Specifications
| Measuring Parameter | Monitors True RMS Earth Leakage Current (upto 30A ) |
| Electrical Connection | 1Ø-2W, 3Ø-4W, 3Ø-3W |
| Supply Voltage | 90 – 270V AC/DC |
| Trip Leakage current range | 30mA – 30A |
| Display Current range | 15mA – 33A |
| Time Ranges | 0 to 999 sec |
| Response time | < 30ms (if trip current 5 x set value & Instantaneous trip is ON), < 50ms (if trip current = 1 x set value) |
| CBCT DETECTION | Yes, when CBCT absent or short |
| Accuracy | ± 5% setting of current, ± 5% time setting for ±100ms |
| Output Contact | 1 C / O (SPDT ) |
| Output Rating | NO / 5A@250V AC / 28V DC |
| Size | 96X96mm |
| Mounting Type | Panel mount |
Additional information
| Weight | 0.500 kg |
|---|
