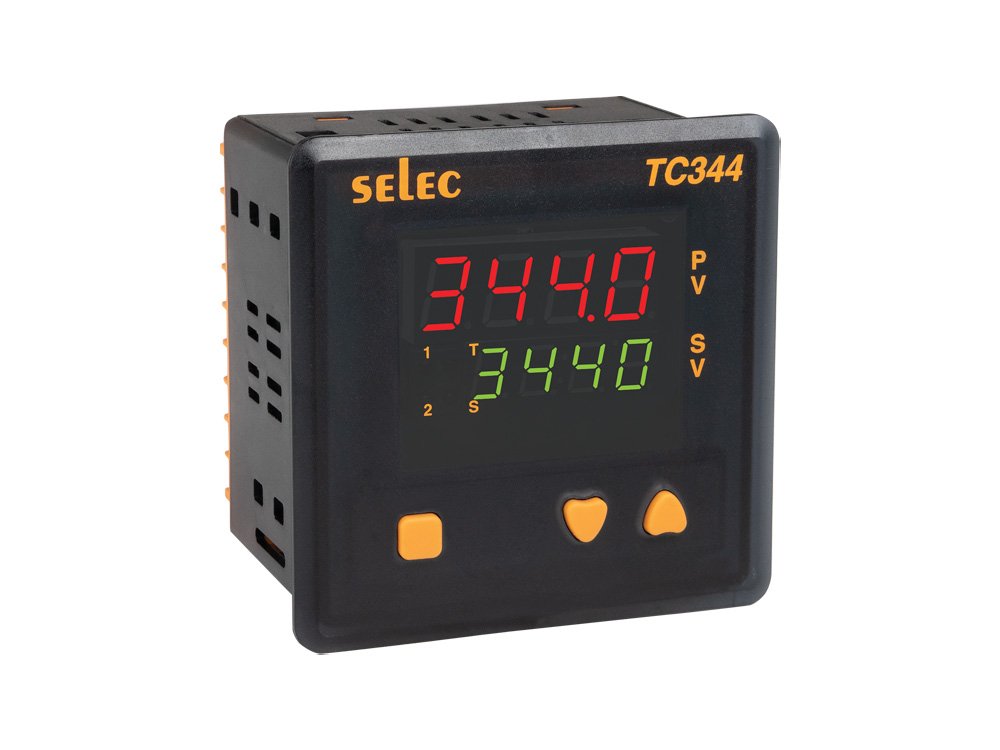

Original price was: රු7,500.00.රු6,900.00Current price is: රු6,900.00.SELEC TC344AX TEMPERATURE CONTROLLER 96X96 MM
රු12,550.00 Original price was: රු12,550.00.රු11,300.00Current price is: රු11,300.00.
Specifications
- 4 digit Dual display temperature controller
- (TC: J, K, T, R, S/ RTD: PT100) sensor input
- ON-OFF/Auto-tune PID control
- 5A Relay/ 12V SSR control output
- Auxiliary 5A Relay output
- 96 mm x 96 mm size
- Heat-Cool PID and Dwell timer functions
- Panel mount
- 90 to 270V AC/DC supply voltage
- Frequency 50/60 Hz
In Stock
Add to Wishlist
Add to Wishlist
Description
Display Type | 7 Segment LED Dual Display |
Display Configuration | 4 + 4 Digits |
Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
Resolution | 0.1/1° for TC/RTD , (fixed 1° for R and S TC) |
Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 ° For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
Control Output | RELAY or SSR. |
Auxiliary Output | RELAY |
Control Mode | Auto Tune PID / ON-OFF |
Feature | Heat Cool PID , Dwell Timer |
Supply Voltage | 90 to 270V AC/DC |
Size | 96 x 96mm |
Mounting Type | Panel Mount |

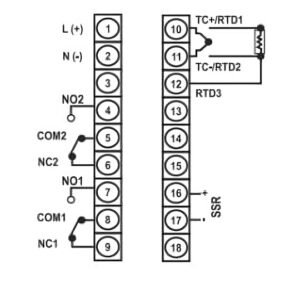

Dimensions (MM) And Terminal connections
Additional information
Weight | 0.250 kg |
---|---|
Dimensions | 10 × 8 × 10 cm |
