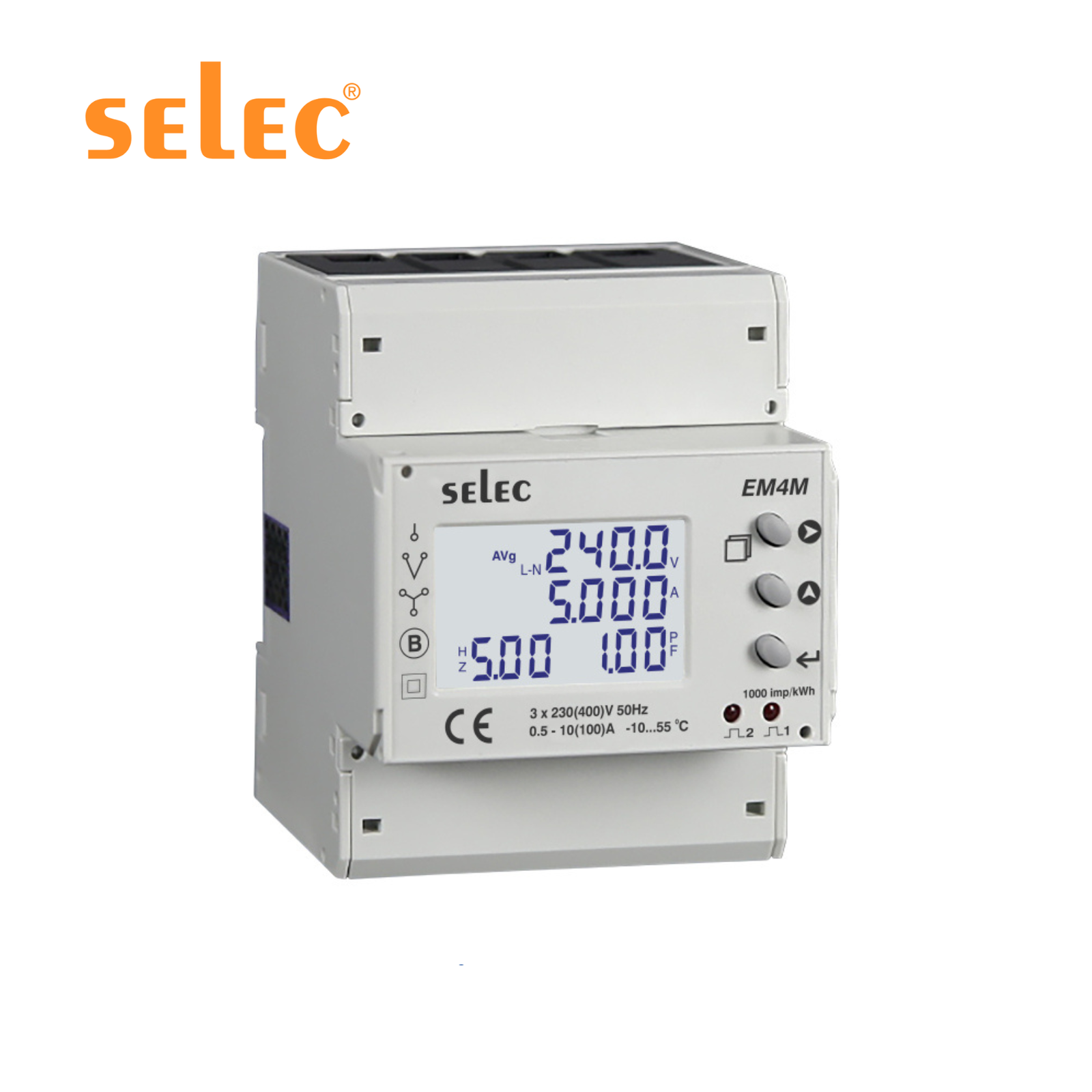

SELEC EM4M 3-Phase Din Rail mount Energy meter

රු23,900.00

In Stock

Direct current measurement up to 100A, Dual-Input measurement
Compatible with 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wires systems
85 to 285V (L-N), 120 to 494V (L-L) measurement , Self Supplied
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
Two pulse outputs configurable for Import/Export Energy measurement
RS485 Modbus communication
CE Certified

In Stock

Description

Specification	Details
Display Type	LCD with Backlight
Display Configuration	1 Row of 4 Digits, 2 Rows of 7 Digits
Electrical Connection	1Ø – 2W, 3Ø – 3W, 3Ø – 4W
Type of Output	Two Pulse Outputs
Communication Protocol	RS485 and MODBUS RTU
Features	D.G Sensing, Self Powered, 100A Direct Connection, Multifunction parameter monitoring, Bi-directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive / Apparent), Max-Demand Power
Power Consumption	4VA Max
Input Current Range	Ib: 10A (Min – 0.5A, Max – 100A)
Supply Voltage	85 to 285V AC (L-N), 120 to 494V AC (L-L), 45 to 65Hz (Self-Powered)
Mounting Type	Din Rail
Size	70 x 90mm
Certification	CE
