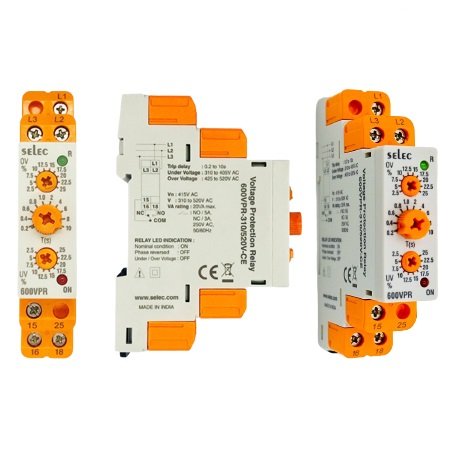

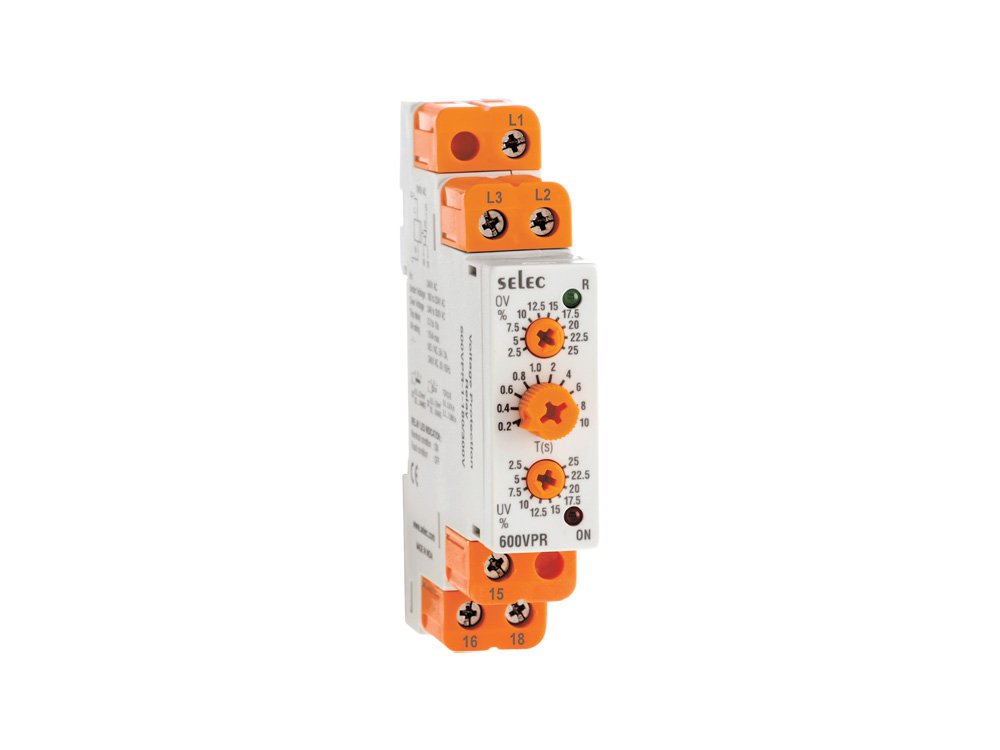

SELEC 600VPR-310/520V-CE VOLTAGE PROTECTION RELAY

Weight 0.90 kg
Dimensions 11 × 2.2 × 10.2 cm

රු7,500.00 Original price was: රු7,500.00.රු6,900.00Current price is: රු6,900.00.

In Stock
  • Three phase voltage Protection relay
  • Monitors: Over / Under Voltage, Phase Failure, Phase asymmetry and Phase sequence
  • Accuracy ± 0.5% of F.S Voltage
  • Supply voltage: 310V to 520V AC (L-L)
  • 1 C/O SPDT output relay
  • CE and RoHS certified

Data Sheet

Instruction Manual

In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist

Description

Brief Specifications

Measuring Parameter Under Voltage, Over Voltage, Phase Sequence, Phase Failure
Electrical Connection 3Ø – 3W
Time Ranges Trip Time Delay : 0.2 to 10 sec,
Power On Delay: 400msec
Accuracy Trip Voltage: ±0.5% of F.S,
Trip Time: ±5% of F.S
Output Contact 1 C/O ( SPDT )
Output Rating NC: 3A @ 250V AC , NO: 5A @ 250V AC
Operating Voltage 154 To 500V AC (L – L)
Size 17.5mm
Mounting Type DIN Rail Mount
Certification CE

Product Variants

Product Code Supply Voltage Certification
600VPR-1-130/320-CE 310 to 520V AC CE, RoHS

Features :

  • 3Ø – 3 Wire Input
  •  Monitors Under Voltage, Over Voltage, Phase Sequence & Phase Failure
  •  Trip Delay (T) : 0.2 to 10sec
  • LED Indication : Relay ON, Power ON
  • Slim, Space Saving Design
  • DIN Rail Mount

Additional information

Weight 0.90 kg
Dimensions 11 × 2.2 × 10.2 cm
