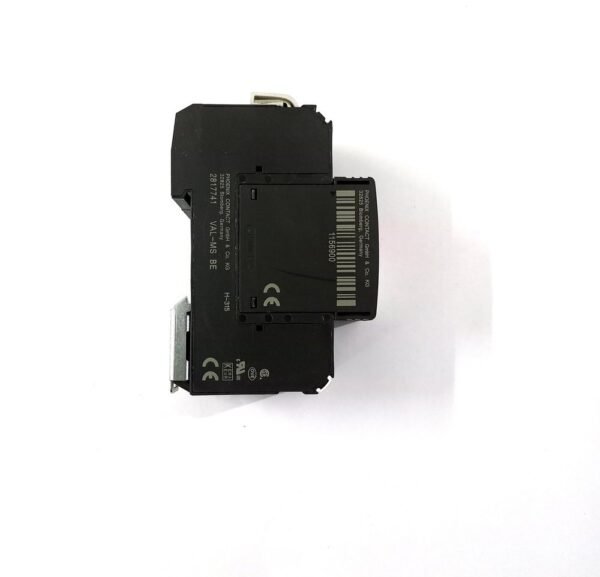

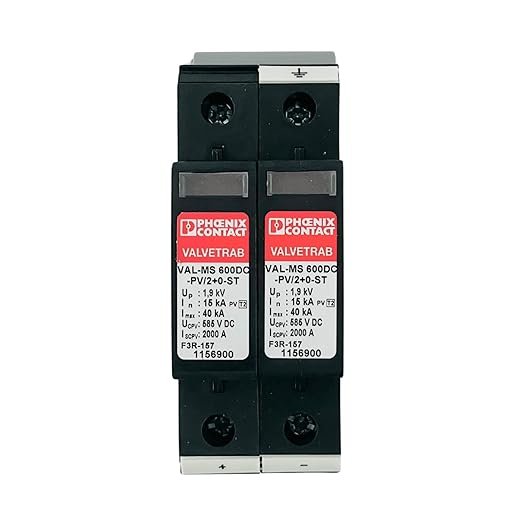

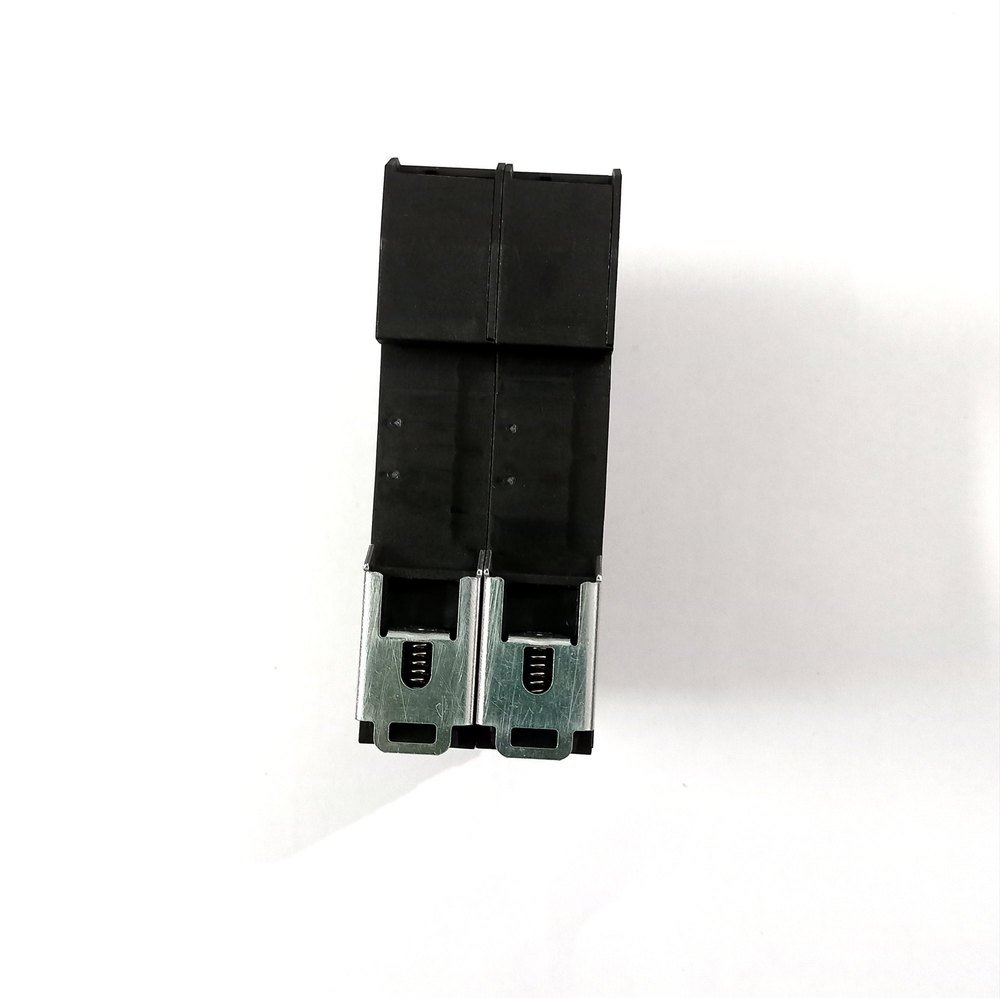

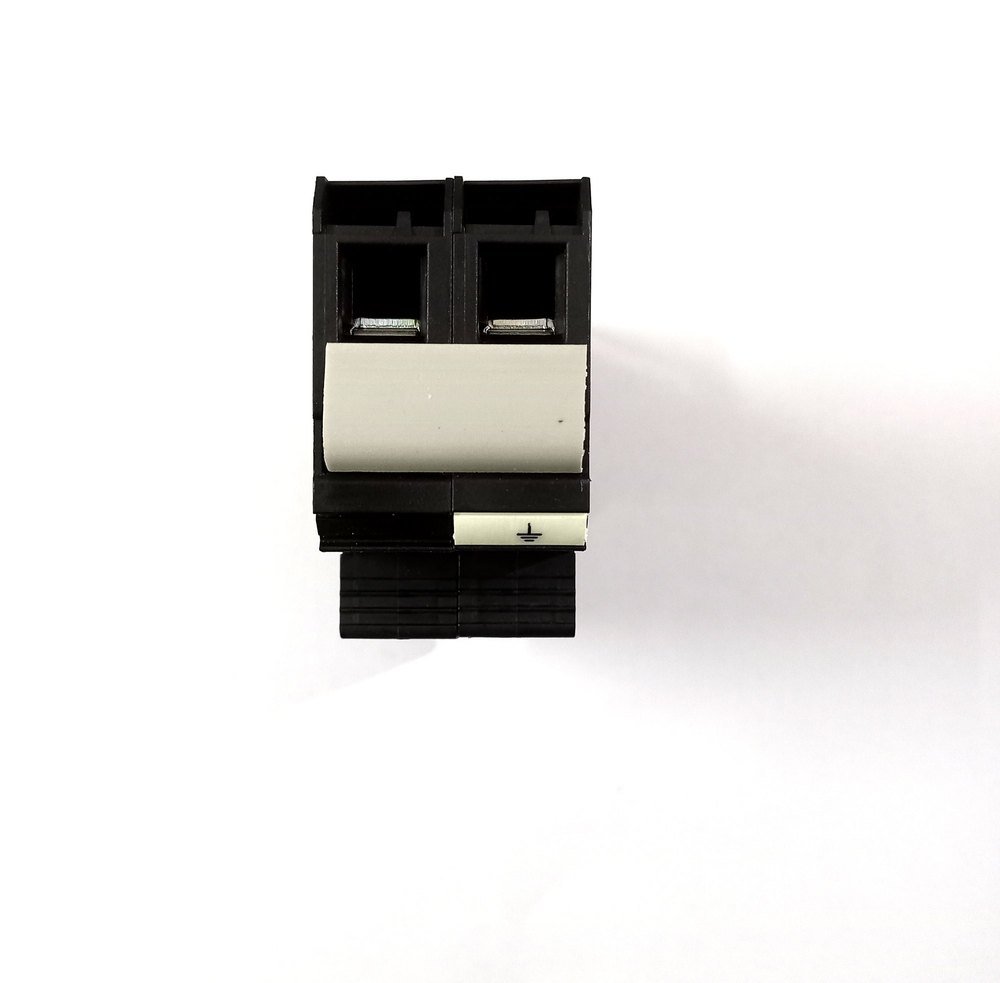

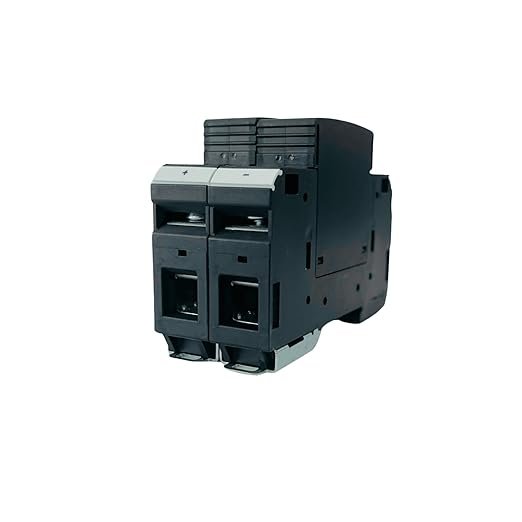

DC SPD 600V 2P PHOENIX VALVETRAB VAL-MS 600DC-PV/2+0-ST
Key Features of DC SPD
- This surge protector is compatible with DC only. Do not install it with AC circuits.
- High Discharge Capacity: Protects your PV system from severe power surges caused by lightning or other electrical disturbances.
- 600 VDC Voltage Rating: Suitable for use in solar power systems, where DC voltages can reach high levels. Maximum Discharge Current of 40kA.
- Low Voltage: Minimizes the amount of voltage that reaches your PV equipment during a surge, protecting your sensitive electronics from damage.
In Stock
Add to Wishlist
Add to Wishlist
Description
The PHOENIX 600V DC SPD Surge Protective Device (SPD) is designed to protect electrical systems from voltage spikes and transients, particularly in direct current (DC) applications. Here’s a detailed overview of its features, functions, and benefits:
Description
- Specifications:
- Voltage Rating: Rated for a maximum of 600 volts DC, making it suitable for various DC applications, including solar power systems, battery storage, and other renewable energy installations.
- Nominal Discharge Current (In): Indicates the SPD’s ability to handle surges; specific models may vary in ratings.
- Design and Construction:
- Compact Housing: Typically features a compact design suitable for installation in electrical panels or enclosures, often designed for DIN rail mounting for easy integration into existing systems.
- Durable Materials: Constructed from materials that ensure long-term durability and resistance to environmental factors.
- Surge Protection Features:
- Multi-Stage Protection: Often incorporates multiple stages of protection, which may include varistors and gas discharge tubes to effectively divert excess voltage away from sensitive equipment.
- Fast Response Time: Designed to react quickly to transient overvoltages, minimizing the risk of damage to connected devices.
- Indicators:
- Visual Status Indicators: Equipped with LED indicators to show operational status, making it easy to determine if the SPD is functioning correctly or if it has tripped due to a surge.
- Applications:
- Renewable Energy Systems: Commonly used in solar energy systems to protect inverters, charge controllers, and battery banks from surges caused by lightning strikes or grid fluctuations.
- Industrial Equipment: Suitable for various industrial applications where DC systems are present, providing critical surge protection.
Additional information
| Weight | 0.280 kg |
|---|---|
| Dimensions | 9.5 × 3.9 × 6.8 cm |
